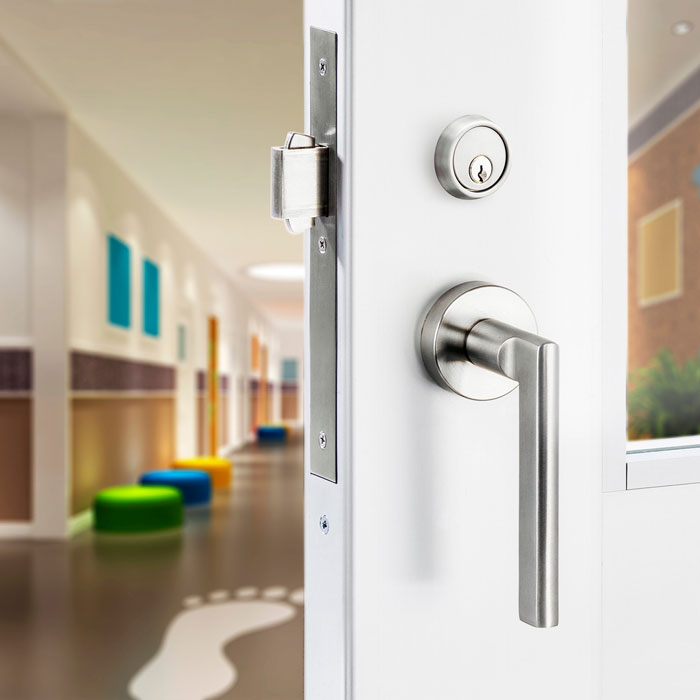

INOX PD95 Series Sliding Door Mortise Lock with Emergency Egress

Name: INOX PD95 Series Sliding Door Mortise Lock with Emergency Egress
Brand: INOX
SKU: PD95
Price: 523.00 USD
Availability: InStock

$523.00

Questions? We are here to help. Drop us a line.

Delivery and Shipping

$15 flat rate FedEx Ground direct from the manufacturer in California.

Returns

Returns available within 30 days of receipt.

INOX by Unison

INOX is a line of high-quality door hardware manufactured with steel by Unison. Most hardware and finishes are available for quick shipping from California.

Description

The INOX PD95 series sliding door mortise lock with emergency egress provides the simplicity and security of sliding door mortise locks while ensuring quick and easy egress in case of emergency. All with the added beauty of INOX designer trims and levers.

Available in Privacy, Entry, Classroom, Patio, Entry/Office, and Security Communicating functions. More information on available functions can be found below.

Meets ANSI A117.1 Accessibility (ADA Compliant) and UL1784 Standard

Review the manufacturer's page for more information.

Downloads

Specification

Standard Door Thickness: 1-3/4", Thick Door Kits available
Backset: 2-3/4" and 2-1/2"
Bolt: 1"
Lever Spindle: 8x8mm square
Thumbturn Spindle: 5x5mm square
Case Size: 8"x3-3/8"x11/16"
Lever to Cylinder Center to Center: 3-7/8"
Lever to Thumbturn Center to Center: 2-11/16"
Handing: Specify handing
Lockcase: Field reversible without disassembly
Cylinder: Schlage C keyway 6 pin mortise with 2 keys
Emergency Egress: Top security, but single-action function of interior lever ensures easy exit in case of emergency.
ADA: Complies with ADA regulations.
Privacy Indicator: Optional privacy release with indicate available.

Compliance

ANSI A1171.1 Accessibility Code (ADA Compliant)
Meets UL1784 Standard
ANSI/BHMA 156.36 certified and tested to Grade 1 standard of 250,000 cycles

PD95 Drawing

Function Options

	Privacy: PD9540 Deadbolt locked with inside thumbturn and can be unlocked with thumbturn or outside emergency coin release Outside lever is always rigid Inside lever retracts deadbolt for emergency egress
	Classroom: PD9570 Deadbolt can be retracted by inside lever or outside key No thumbturn on inside Outside lever rigid at all times Inside lever retracts bolt for emergency egress
	Patio: PD9560 Deadbolt is locked by inside thumbturn Deadbolt can be retracted by inside lever or thumbturn Outside lever rigid at all times but door cannot be opened from outside when locked Inside lever retracts bolt for emergency egress
	Entry/Office: PD550 Deadbolt engaged or retracted by inside thumbturn or outside key Outside lever is rigid at all times Inside lever retracts deadbolt for emergency egress
	Security Communicating: PD592 Deadbolt can be retracted by outside key only No thumbturn on inside Outside lever rigid at all times No lever on opposite side; blank or blind rose only

Components of the Lock

PD95 Exploded

Brass deadbolt with 1" throw
Self-retracting hook with non-marring latch bolt
Stainless steel or brass faceplate, 2mm thick
Vertically adjustable strike

Lever Options

View the XGT square or XGS round rosette option for each lever style. Follow the link to the manufacturer's site for more information on a specific lever option.

201 Cologne	202 Munich	205 Frankfurt	221 Aurora	243 Sunrise
244 Twilight	318 Cafe	345 Tokyo	346 Osaka

Thumbturn Options

TT02 Thumbturn
Turn Length: 1"
Rose Diameter: 1-13/16"

TT04 Thumbturn
Turn Length: 1-1/2"
Rose Diameter: 1-13/16"

TT07 Thumbturn
Turn Length: 2-3/4"
Rose Diameter: 1-13/16"

Finish Options

Most finishes are standard and available for quick shipping. CeraMax finishes are custom and available for a nominal upcharge and extended lead times.
