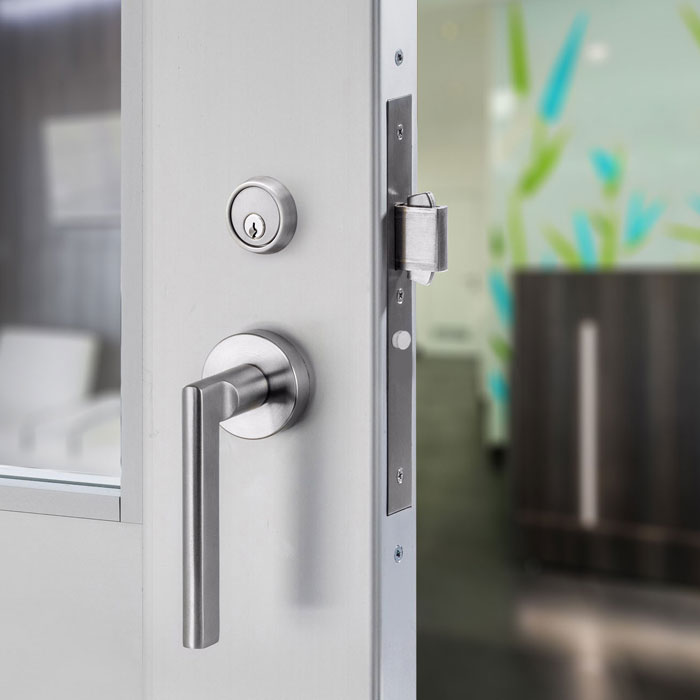

INOX PD96 Series Sliding Door Self-Latching, Self-Locking Mortise Lock

Name: INOX PD96 Series Sliding Door Self-Latching, Self-Locking Mortise Lock
Brand: INOX
SKU: PD9600
Price: 518.4 USD
Availability: InStock

INOX PD96 Series Sliding Door Self-Latching, Self-Locking Mortise Lock

$518.40 USD

Sale Sold out

Shipping calculated at checkout.

Product variants

Quantity

Shipping & Returns

Most orders ship within 5 days, express shipping not available. Selection of CeraMax finish will extend lead time by 2-3 weeks. Returns not accepted unless product arrives incorrect, damaged, or defective.

View full details

Product Info

Architects can now design wider access points, open-concept spaces, and streamlined paths of travel using sliding doors for commercial openings. Available in multiple ANSI/BHMA functions, the patented INOX PD96 is suited for a wide range of applications including but not limited to hospitality, healthcare, commercial, office, and residential facilities

Meets ANSI A117.1 Accessibility (ADA Compliant) and UL 1784 Standard

Review the manufacturer's page for more information.

Downloads

Data Sheet
Installation Instructions
2-1/2" Templates
2-3/4" Templates
Manufacturer's URL

Specification

Standard Door Thickness: 1-3/4"
Thick Door Kits available
Backset: 2-3/4" and 2-1/2"
Bolt: 1"
Lever Spindle: 8x8mm square
Thumbturn Spindle: 5x5mm square
Case Size: 8" x 3-3/8" x 11/16"
Lever to Cylinder Center to Center: 3-7/8"
Lever to Thumbturn Center to Center: 2-11/16"
Handing: Please specify handing when ordering
Cylinder: Schlage C keyway 6 pin mortise with 2 keys

Self-Latching: When sliding door is closed, bolt is automatically engaged into strike; outside lever unlocks bolt
Self-Locking: When sliding door is closed, bolt is automatically engaged into strike. Outside lever is in locked position, keeping door locked from outside. Key unlocks outside lever, which then unlocks bolt so that door can be opened from outside. Always emergency egress from inside

Compliance

ANSI A1171.1 Accessibility Code (ADA Compliant)
Meets UL1784 Standard
ANSI/BHMA 156.36 certified and tested to Grade 1 standard of 250,000 cycles

PD96 Drawing

Function Options

	Passage: PD9610 When sliding door closes, Actuator button on faceplate contacts strike and automatically engages deadbolt Outside and inside levers are active and retract deadbolt No thumbturn or keyed cylinder
	Privacy: PD9640 When sliding door closes, Actuator button on faceplate contacts strike and automatically engages deadbolt Outside lever is rigid when locked and cannot retract deadbolt; retracts deadbolt when unlocked Outside lever is locked by inside thumbturn Coin release can unlock outside lever in case of emergency Operating inside lever to retract deadbolt simultaneously resets outside lever and inside thumbturn to unlocked position Inside lever can always retract deadbolt for emergency egress

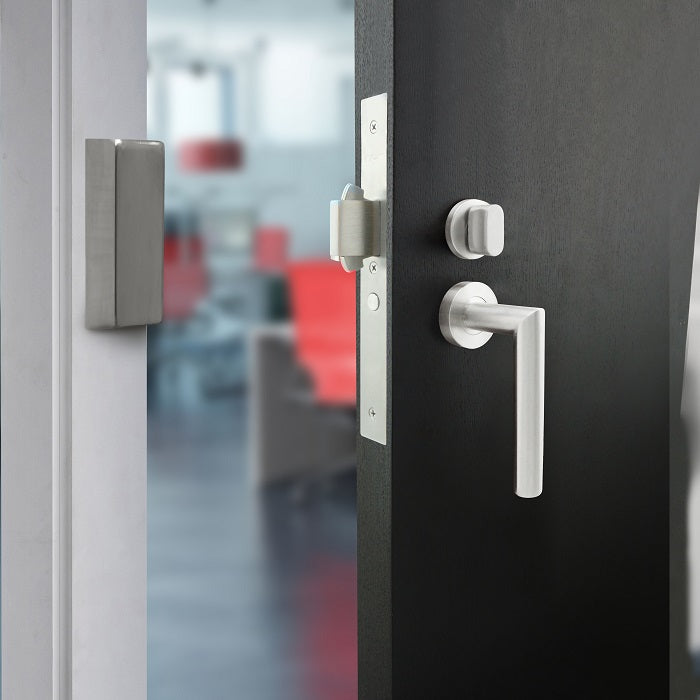

	Office: PD9650 When sliding door closes, Actuator button on faceplate contacts strike and automatically engages deadbolt Outside lever is rigid when locked and cannot retract deadbolt; retracts deadbolt when unlocked Outside lever locked or unlocked by key or thumbturn Operating inside lever for egress simultaneously resets outside lever and inside thumbturn to unlocked position Inside lever can always retract deadbolt for emergency egress
	Entrance: PD9653 When sliding door closes, Actuator button on faceplate contacts strike and automatically engages deadbolt Outside lever is rigid when locked and cannot retract deadbolt; retracts deadbolt when unlocked Outside lever locked or unlocked by key or inside thumbturn Outside lever remains in locked or unlocked position until status reset with key or inside thumbturn Operating inside lever will not change locked or unlocked status of outside lever or inside thumbturn Inside lever can always retract deadbolt for emergency egress
	Patio: PD9660 When sliding door closes, Actuator button on faceplate contacts strike and automatically engages deadbolt Outside lever is rigid when locked and cannot retract deadbolt; retracts deadbolt when unlocked Outside lever is locked or unlocked by inside thumbturn No keyed cylinder outside; door cannot be opened from outside when locked Operating inside lever to retract deadbolt simultaneously resets outside lever and inside thumbturn to unlocked position Inside lever can always retract deadbolt for emergency egress

Components of the Lock

Components of the PD96 Lock

Solid brass push button to activate the self-locking feature
Bolt: 1" (25.4 mm) throw, heavy duty brass bolt
Self-retracting non-marring hooks Strike: Vertical adjustment of dust box 1/4" (6.35mm)
Strike with Actuator
Faceplate: Stainless Steel, 5/64" (2 mm) thick

Lever Options

View the XGT square or XGS round rosette option for each lever style. Follow the link to the manufacturer's site for more information on a specific lever option.

201 Cologne	202 Munich	205 Frankfurt	221 Aurora	243 Sunrise	244 Twilight
318 Cafe	345 Tokyo	346 Osaka

Thumbturn Options

TT02 Thumbturn
Turn Length: 1"
Rose Diameter: 1-13/16"

TT04 Thumbturn
Turn Length: 1-1/2"
Rose Diameter: 1-13/16"

TT07 Thumbturn
Turn Length: 2-3/4"
Rose Diameter: 1-13/16"

Finish Options

Most finishes are standard and available for quick shipping. CeraMax finishes are custom and available for a nominal upcharge and extended lead times.
