INOX PD2000 TwistLock Edge Pull Pocket Door Lock

INOX by Unison

INOX is a line of high-quality door hardware manufactured with steel by Unison. Most hardware and finishes are available for quick shipping from California.

Description

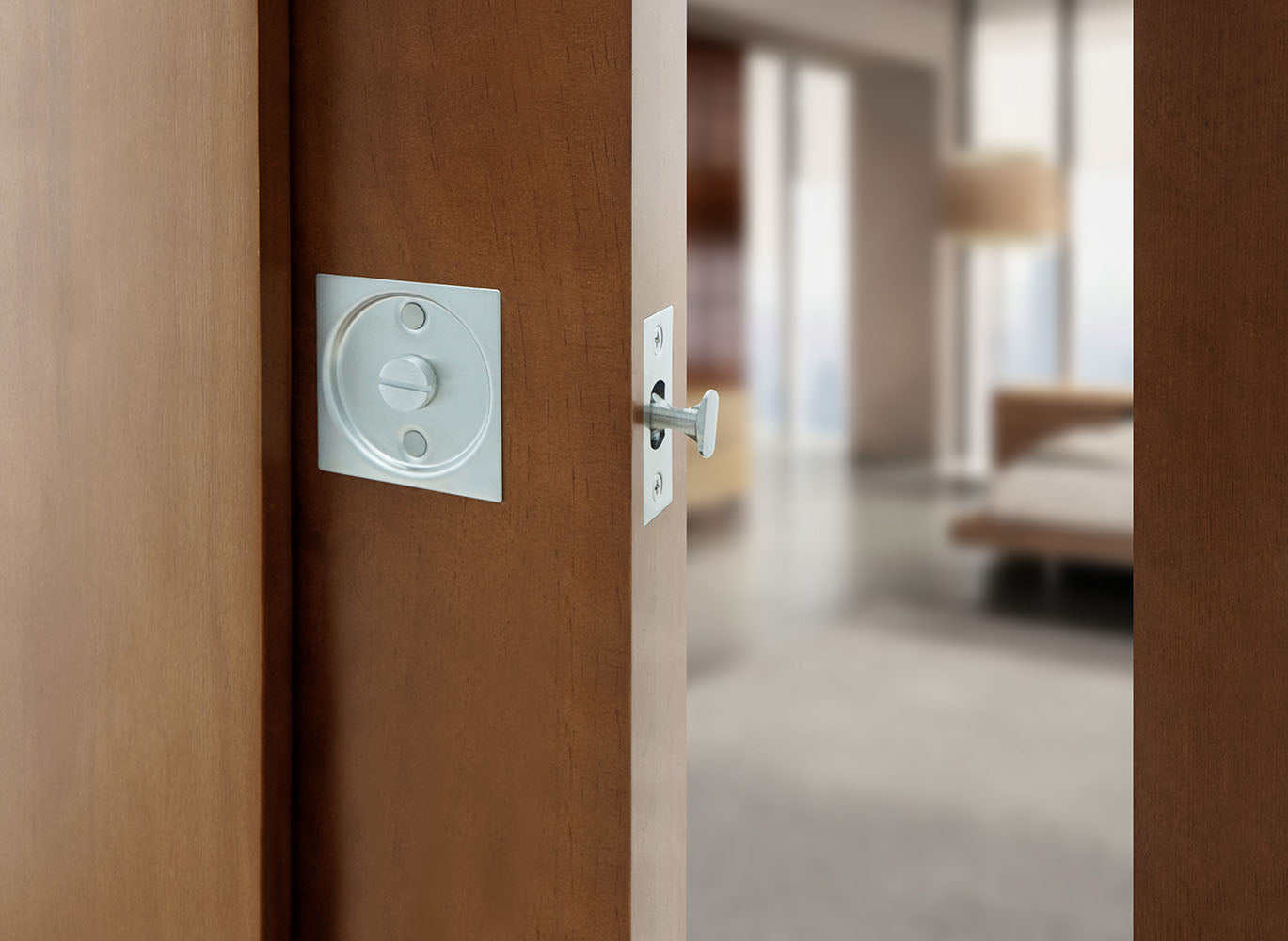

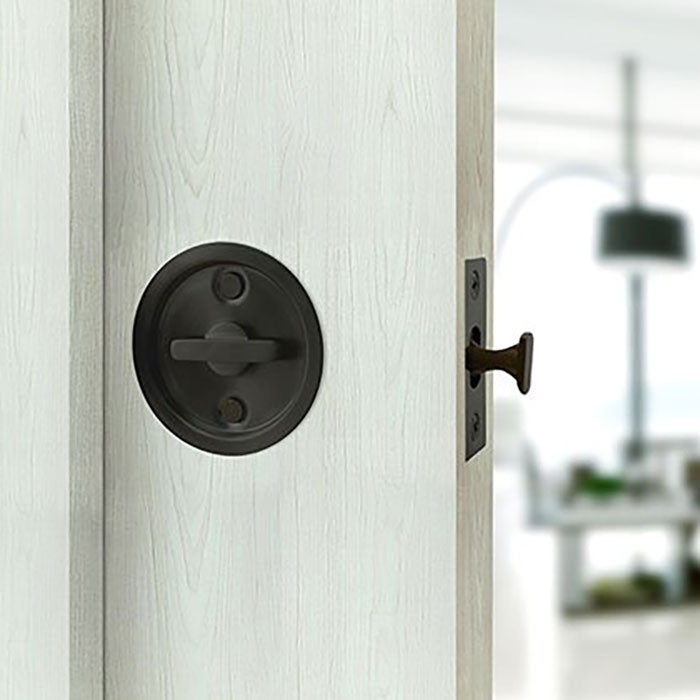

The distinctive PD2000 TwistLock™ Edge Pull/Privacy Pocket Door Lock features a top-of-the-line edge pull and designer INOX trim working together as both spring-loaded edge pull and locking bolt.

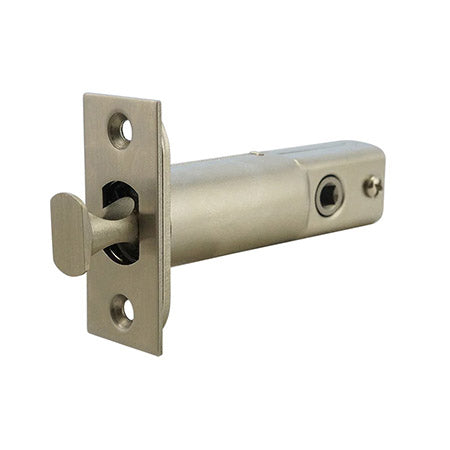

The PD2000 fits a standard 2-1/8" bore, no special prep required, and is constructed of heavy gauge steel. A rotating bolt locks into the strike for a quick, easy pulling and locking of pocket doors. The edge pull and lock have been successfully tested to 250,000 cycles. Available with both standard and concealed installation fastener trim. If a privacy function is selected, then an emergency coin release available on the outside of the door.

Spring Loaded: Push to eject the hammerhead-shaped finger pull bolt to pull the door closed.

Double Duty: The finger pull bolt is designed to contour ergonomically to your fingers, but also acts at the bolt engaging the strike as a privacy lock.

Review the manufacturer's page for more information.

Downloads

Data Sheet
Installation Instructions
Template
Manufacturer's URL

Specifications

Door Thickness, Standard Trim: 1-3/8" - 1-3/4"
Concealed Fastener Trim: 1-3/4"
Thick door kits available
Backset: 2-3/8" (not available for 2-3/4")
Bolt Projection: 5/8"
Bolt Case Size: 3-1/4" x 3-5/8" x 1"
Thumbturn Spindle: 5 x 5mm square
Handing: Non-handed

PD2000 Drawing

Function Options

PD2062
Privacy Lock with Edge Pull

Spring-loaded edge pull activated by pressing on front end. Edge Pull rotates inside strike acting as deadbolt. Rotate thumbturn on recessed trim to lock or unlock Deadbolt/Edge Pull inside strike. Push Deadbolt/Edge pieces back into lockcase when not in use. Emergency release via coin turn from outside.

PD2061
Passage/Edge Pull

Spring-loaded edge pull is activated by pressing on front end. Recessed flush trim to assist closing and opening of door. Push Edge Pull back into lock case when not in use

Trim Options

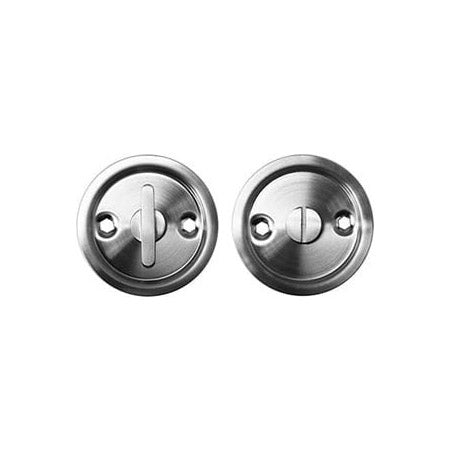

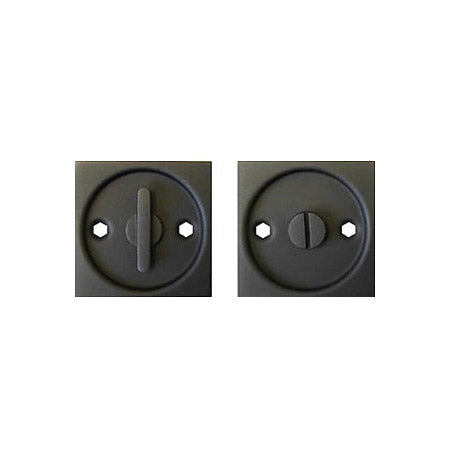

FH12 Round Rose 2-1/2" diameter 1-3/8" to 1-3/4" thick doors	FH13 Square Rose 2-3/8" square 1-3/8" to 1-3/4" thick doors

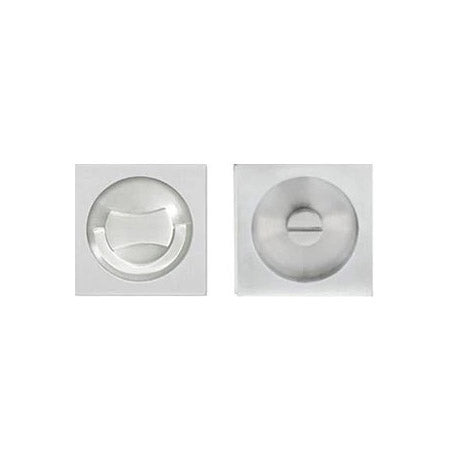

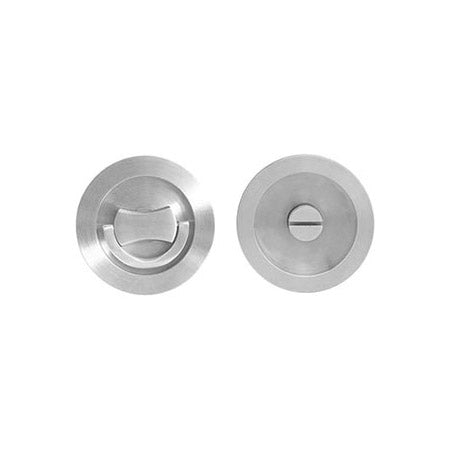

FH22CF Round Rose 2-1/2" diameter 1-3/4" thick doors Thick door kits available	FH23CF Square Rose 2-3/8" square 1-3/4" thick doors Thick door kits available

Finish Options

Most finishes are standard and available for quick shipping. CeraMax finishes are custom and available for a nominal upcharge and extended lead times.
