Product Info
|

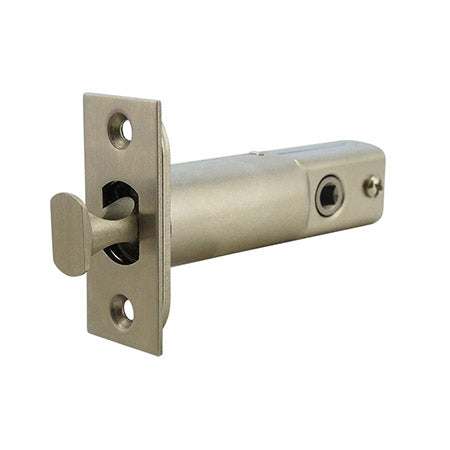

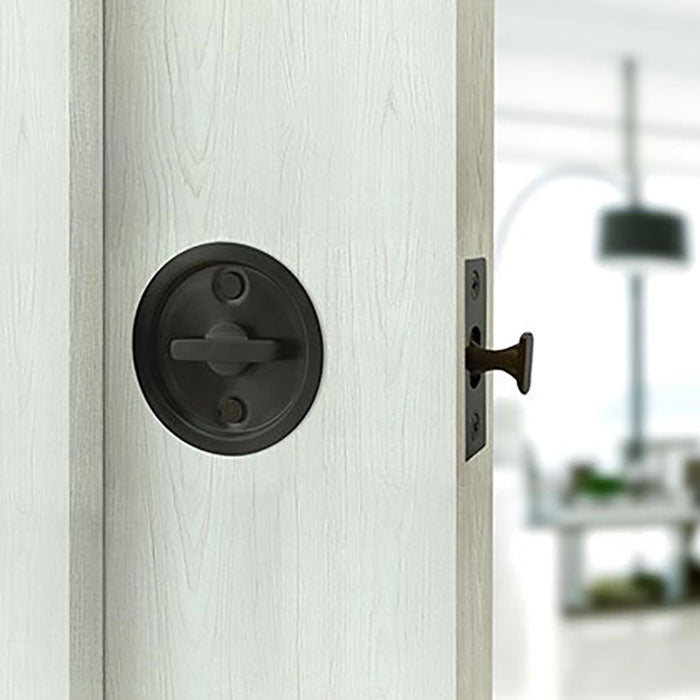

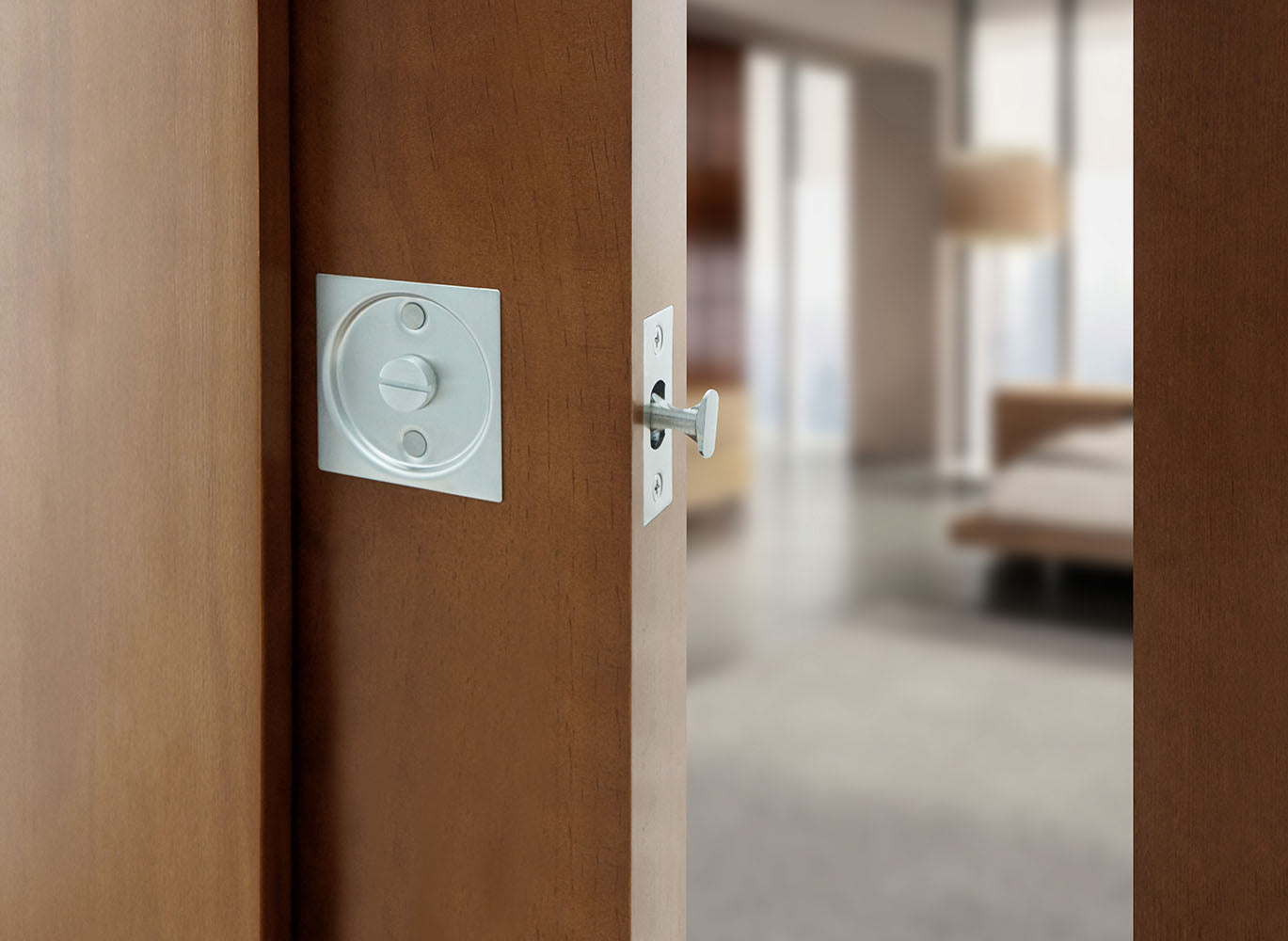

The distinctive PD2000 TwistLock™ Edge Pull/Privacy Pocket Door Lock features a top-of-the-line edge pull and designer INOX trim working together as both spring-loaded edge pull and locking bolt. The PD2000 fits a standard 2-1/8" bore, no special prep required, and is constructed of heavy gauge steel. A rotating bolt locks into the strike for a quick, easy pulling and locking of pocket doors. The edge pull and lock have been successfully tested to 250,000 cycles. Available with both standard and concealed installation fastener trim. If a privacy function is selected, then an emergency coin release available on the outside of the door. Spring Loaded: Push to eject the hammerhead-shaped finger pull bolt to pull the door closed. Double Duty: The finger pull bolt is designed to contour ergonomically to your fingers, but also acts at the bolt engaging the strike as a privacy lock. Review the manufacturer's page for more information. |
DownloadsData Sheet SpecificationsDoor Thickness, Standard Trim: 1-3/8" - 1-3/4" |
Function Options
 |

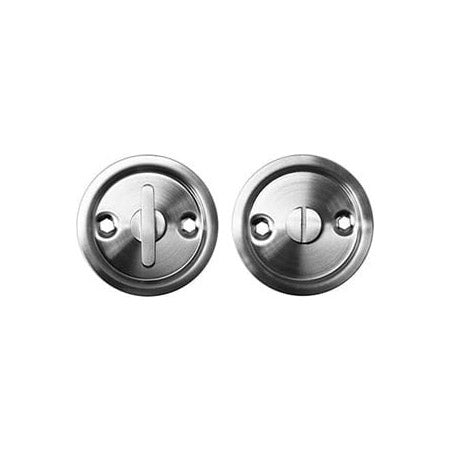

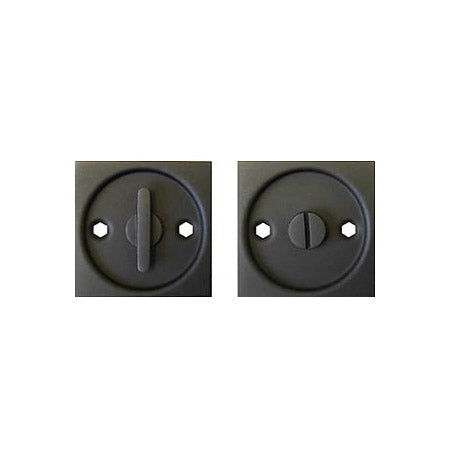

PD2062 Spring-loaded edge pull activated by pressing on front end. Edge Pull rotates inside strike acting as deadbolt. Rotate thumbturn on recessed trim to lock or unlock Deadbolt/Edge Pull inside strike. Push Deadbolt/Edge pieces back into lockcase when not in use. Emergency release via coin turn from outside. |
 |
PD2061 Spring-loaded edge pull is activated by pressing on front end. Recessed flush trim to assist closing and opening of door. Push Edge Pull back into lock case when not in use |
Trim Options
|
|
|
|
|
|
Finish Options
Most finishes are standard and available for quick shipping. CeraMax finishes are custom and available for a nominal upcharge and extended lead times.
|
|
|
|
|
|
|
|
|
|
