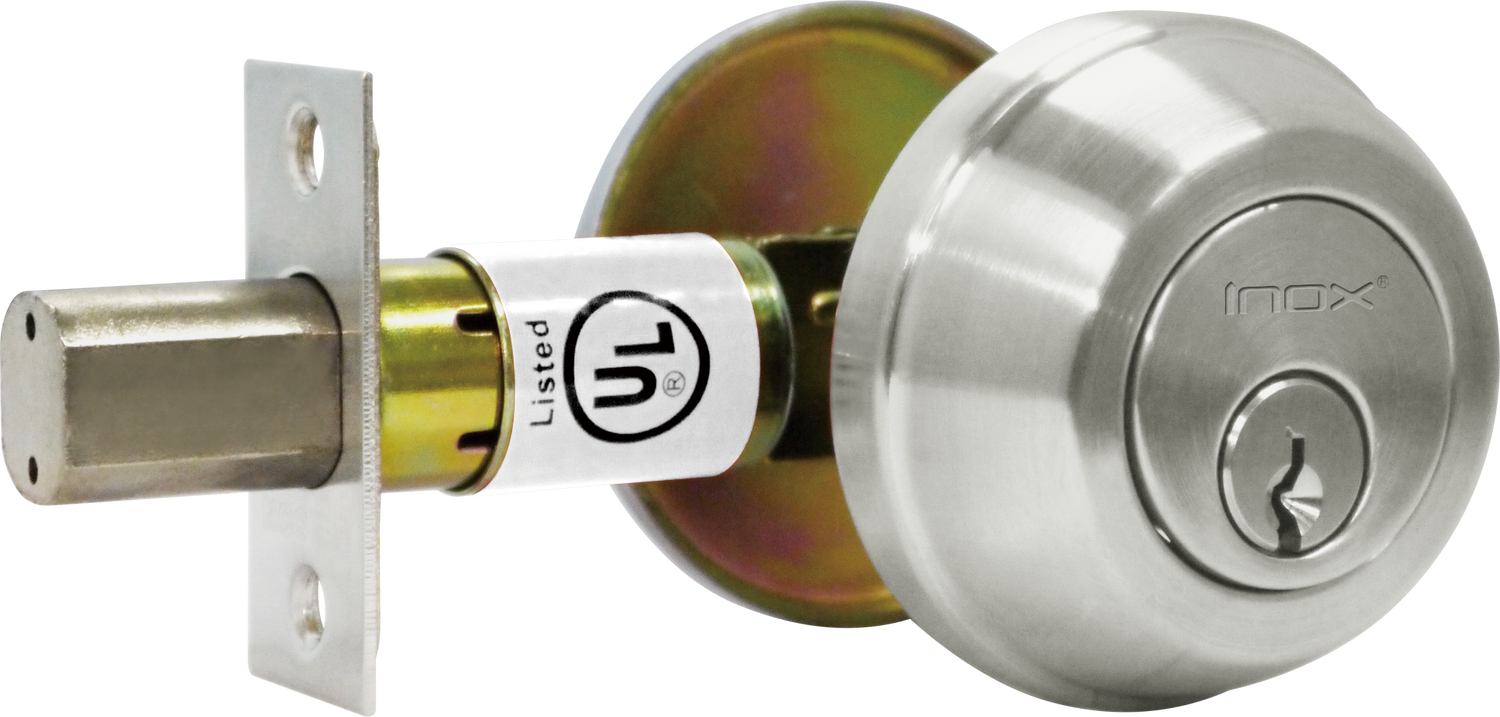

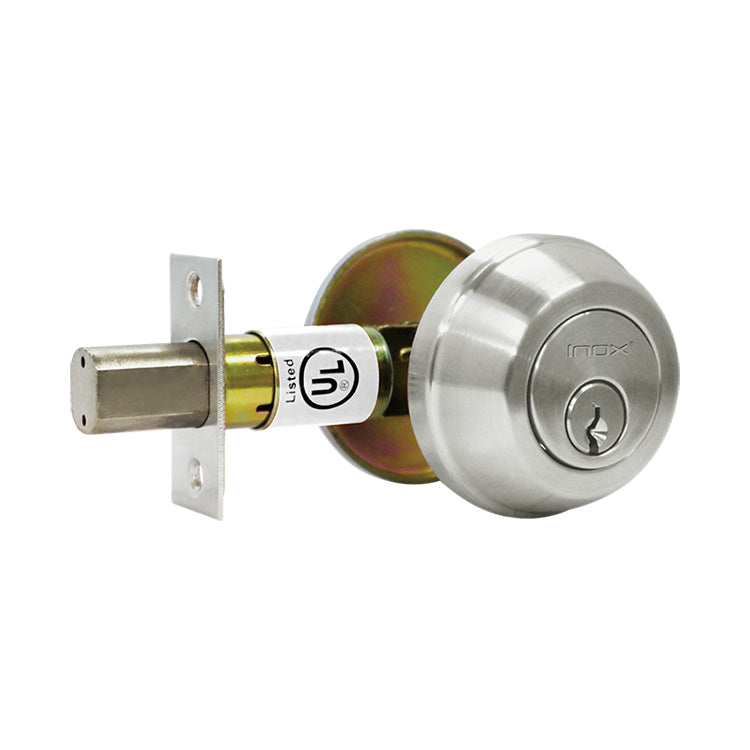

INOX BX Series Standard Duty Deadbolts
INOX by Unison
INOX is a line of high-quality door hardware manufactured with steel by Unison. Most hardware and finishes are available for quick shipping from California.
Description
Description
The BX Series brings together premium materials, thoughtful design and robust security in a refined package—ideal for residential, light-commercial and hospitality applications where style and performance matter.
Review the manufacturer's page for more information.
Specification
Door Thickness:1-3/8” (35mm) ~ 2”(51mm) doors standard
Backset: 2-3/8"(60mm) or 2-3/4"(70mm)
Handing: Non-handed
Exposed Trim: 2-1/2"(63.5mm) diameter solid brass, one-piece design exceeds BHMA/ANSI Grade 1 standards
Faceplate: 1-1/8”(28.6mm) x 2-1/4” (57mm) with square corners stainless steel or brass faceplate
Dead Bolt: 1”(25mm) throw deadbolt with hardened steel core
Strike: 1-1/8”(28.6mm) x 2-3/4” (70mm) with steel reinforcement
Cylinder & Keys: 6-pin anti-pick cylinder with Schlage C keyway, keyed different with 2 brass keys per lock. Small Format Interchange Core (SFIC) available by specifying IC cores, order separately
Keying Options: Keyed Alike, Master keying, Grand Master Keying, and Construction Keying available by special order. Nickel silver keys available by special order
Compliance
- ANSI/BHMA A156.36 & A156.5 Grade 1
- UL Listed for UL10B and UL10C, up to 3 Hours
- UBC Standard 7-2 (1997) NFPA 252
- NFPA 80 National Fire Protection - Fire Door Assembly
- NFPA101 National Fire Protection - Life Safety
- ANSI/BHMA A156.18 Finishes
- ANSI A117.1 ADA Accessibility
Function Options
 |
BX660 (ANSI: E0152) Single Cylinder
|
 |
BX662 (ANSI: E0142) Double Cylinder
|
 |
BX680 (ANSI: E0192) Door Bolt
|

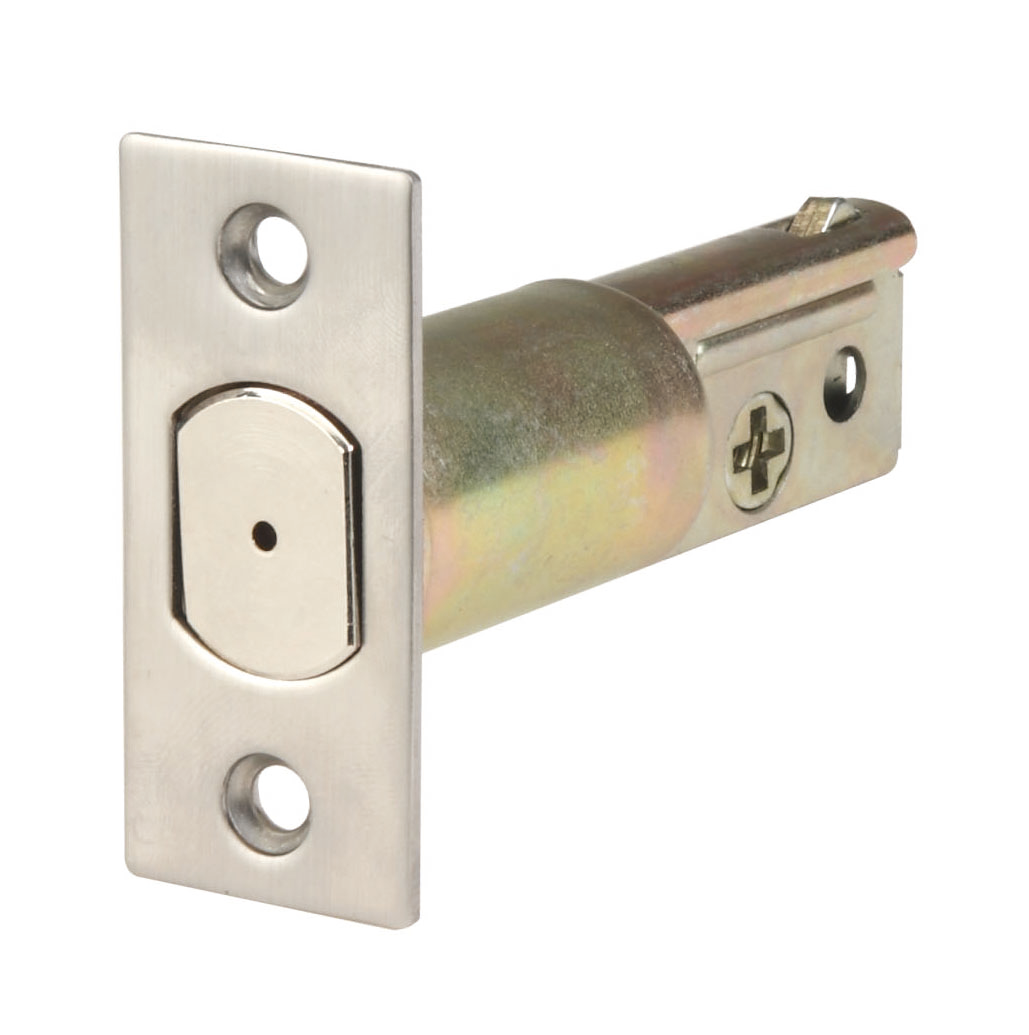

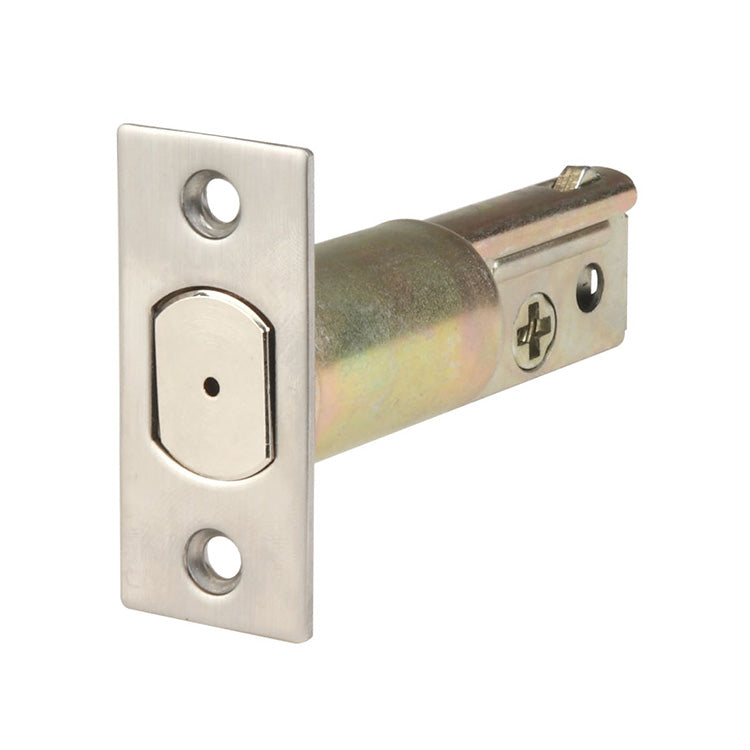

Deadbolt
 |
|
Deadbolt Strike
Deadbolt Strike 1-1/8” (28mm) x 2-3/4” (70mm) with reinforcement plate, dustbox and 3" (76mm) screws
LSR-BT1
Stocked Finishes
Stocked finishes are standard and available for quick shipping, generally within 3 to 5 business days. Other finishes are limited to particular levers and noted below.
 26D Satin Chrome |
 10B Oil Rubbed Bronze |
 19G Graphite Black |
