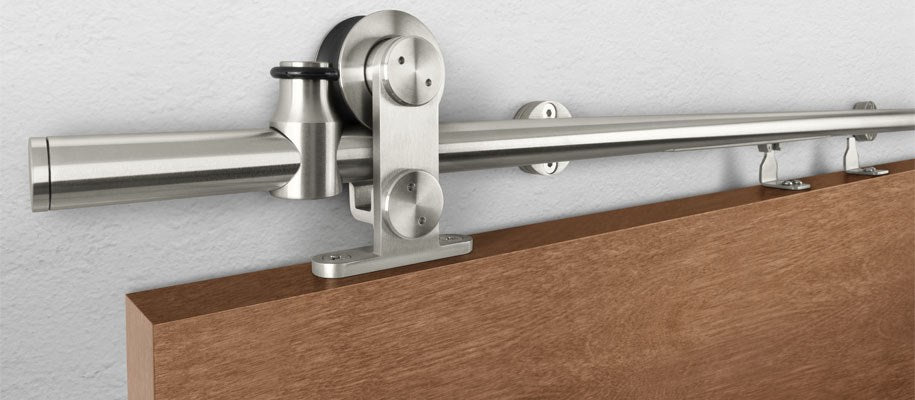

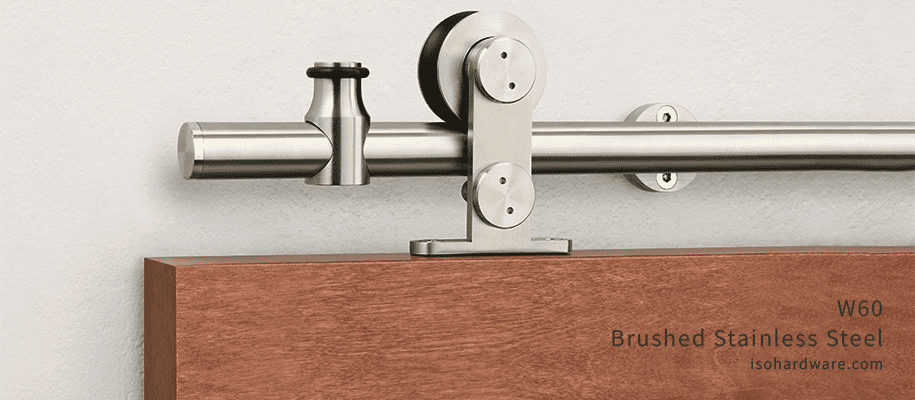

W60 Hardware with Cushion Stop for Sliding Wood Doors

The Pemko W60 stainless steel sliding door hardware and track for wood doors has additional options of a unique Cushion Stop and in three beautiful finishes. Track length options are 78" (6'6" feet) and 98" (8'2" feet). Custom cut sizes are not available at this time. The W60 is designed for single or bi-parting sliding wood panels up to 176 pounds in weight. Installation is side wall mount only.

Our Pemko W60 sliding door hardware matches perfectly with our flush and surface mounted pull options, as well as our barn door lock options.

• Made of 304 stainless steel
• Nylon coated stainless steel wheel for smooth and quiet operation

• Each hanger is equipped with an anti-rise pin so door cannot be lifted off the track
• 5 year warranty
• 6'6" or 8'2" track with end caps

• Available in Brushed Stainless Steel, Polished Stainless Steel, and Satin Powder Coated Black

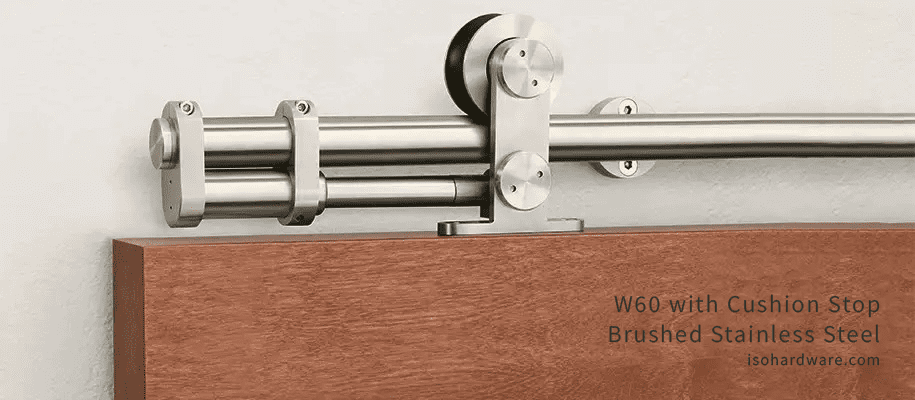

Cushion Stop
The option for a Cushion Stop is available for the W60. This patent pending solution adds incredible luxury to the operation of the hardware and helps to prevent door racking and bounce back, as well as assisting in holding the door open/closed to prevent door creeping. The Cushion Stop meets performance requirements of ANSI/BHMA 156.14.

Soft Close
A more basic Soft Close option is available for the W60 in the brushed stainless steel finish only. View the link to the right to see how the Soft Close function works for the W60.

System Includes

• Stainless steel track (6'6" or 8'2") with end caps.
• 2 door hangers
• Wall brackets
• 1 door bottom guide
• 2 track stops (see stop options below)
• Mounting and installation hardware

Review the manufacturer's page for more information.
