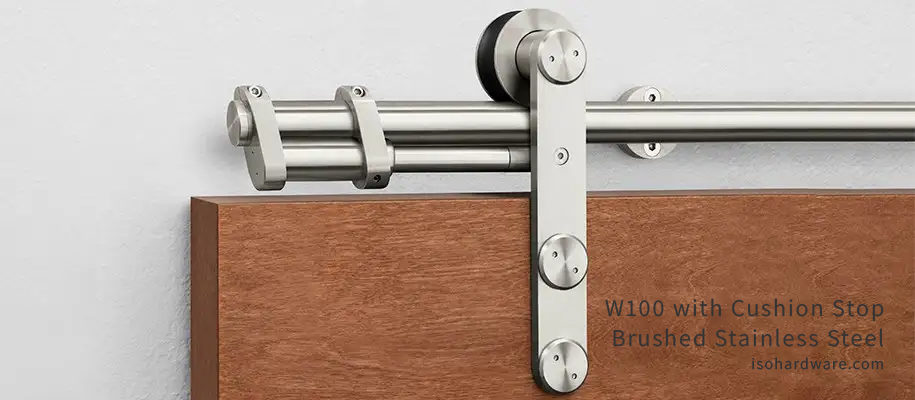

W100 Hardware with Cushion Stop for Sliding Wood Doors

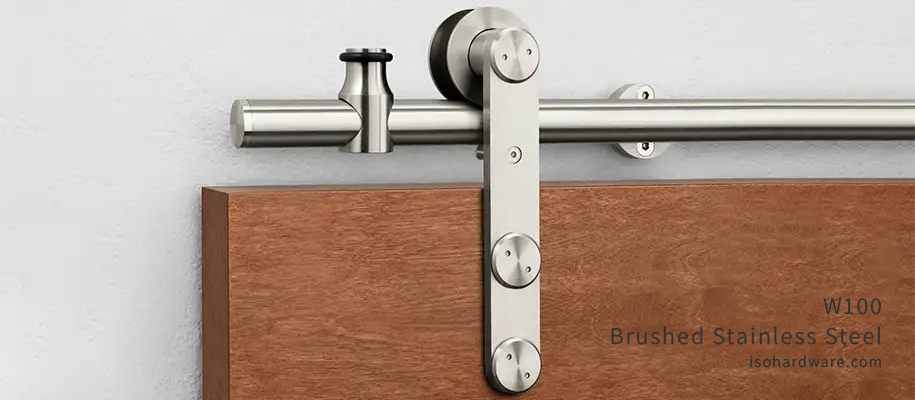

The Pemko W100 stainless steel sliding door hardware and track for wood doors has additional options of a unique Cushion Stop and in three beautiful finishes. Track length options are 78" (6'6" feet) and 98" (8'2" feet). Custom cut sizes are not available at this time. The W100 is designed for single or bi-parting sliding wood panels up to 198 pounds in weight. Installation is side wall mount only.

Our Pemko W100 sliding door hardware matches perfectly with our flush and surface mounted pull options, as well as our barn door lock options.

• Made of 304 stainless steel
• Nylon coated stainless steel wheel for smooth and quiet operation

• Each hanger is equipped with an anti-rise pin so door cannot be lifted off the track
• 5 year warranty
• 6'6" or 8'2" track with end caps

• Available in Brushed Stainless Steel, Polished Stainless Steel, and Satin Powder Coated Black

System Includes

• Stainless steel track (6'6" or 8'2") with end caps.
• 2 door hangers
• Wall brackets
• 1 door bottom guide
• 2 track stops (see stop options below)
• Mounting and installation hardware

Review the manufacturer's page for more information.

Downloads

Sliding Track Hardware Brochure
W100 Specsheet
Specsheet
Installation Instructions
Line Drawing

Manufacturer's URL

Specifications

- Meets performance requirements of ANSI/BHMA 156.14 (Grade 1) for sliding doors by exceeding 100,000 cycles in operation
- Maximum door weight: 198 lbs
- Wood doors only, 1-3/4" thick
- Door bottom 3/8" undercut
- Installs as side wall mount

Size Options

6'6" and 8'2" long tracks available for single or bi-parting door installation. For bi-parting installation (2 doors sliding in opposite directions), order 1 full kit and 1 hardware only kit.

Finish Options
