Pemko

W70 Hardware for Sliding Wood Doors

W70 Hardware for Sliding Wood Doors

$387.00 USD
$387.00 USD
Sale Sold out
Shipping calculated at checkout.
Size
Finish
Roller Stop

Shipping & Returns

Most orders ship within 10 days. Express shipping is not available. Returns are not accepted unless product arrives incorrect, damaged, or defective.

View full details

Product Info

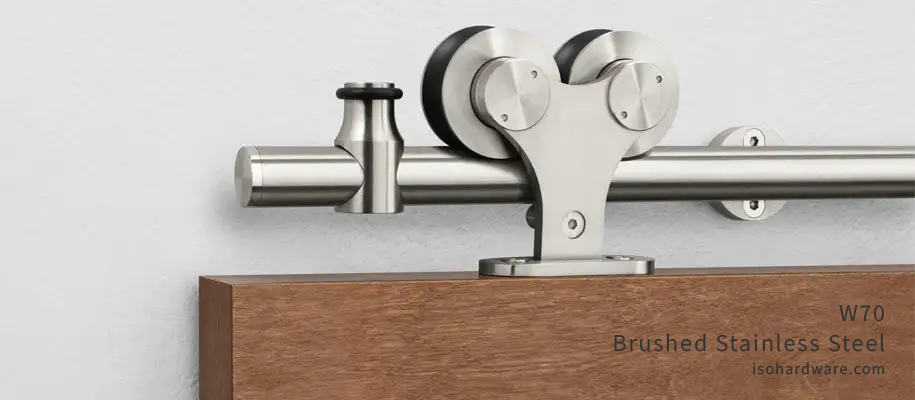

The Pemko W70 stainless steel sliding door hardware and track for wood doors in three beautiful finishes. Track length options are 78" (6'6" feet) and 98" (8'2" feet). Custom cut sizes are not available at this time. The W70 is designed for single or bi-parting sliding wood panels up to 240 pounds in weight. Installation is side wall mount only.

Our Pemko W70 sliding door hardware matches perfectly with our flush and surface mounted pull options, as well as our barn door lock options.

  • Made of 304 stainless steel
  • Nylon coated stainless steel wheel for smooth and quiet operation
  • Each hanger is equipped with an anti-rise pin so door cannot be lifted off the track
  • 5 year warranty
  • 6'6" or 8'2" track with end caps
  • Available in Brushed Stainless Steel, Polished Stainless Steel, and Satin Powder Coated Black

STOP1

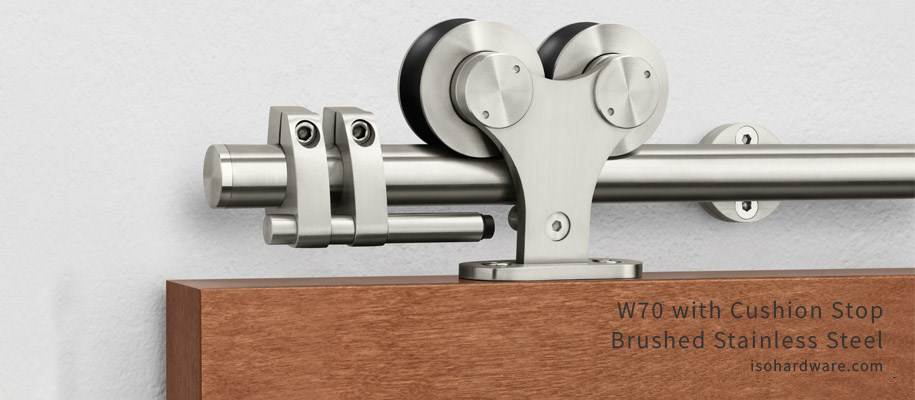

The option for a unique architectural style of stop known as STOP1 is available for the W70 model only.

System Includes

  • Stainless steel track (6'6" or 8'2") with end caps.
  • 2 door hangers
  • Wall brackets
  • 1 door bottom guide
  • 2 track stops (see stop options below)
  • Mounting and installation hardware

Review the manufacturer's page for more information.

Downloads

Sliding Track Hardware Brochure
W70 Specsheet
Installation Instructions
Line Drawing
Manufacturer's URL

Specifications

- Meets performance requirements of ANSI/BHMA 156.14 (Grade 1) for sliding doors by exceeding 100,000 cycles in operation
- Maximum door weight: 240 lbs
- Wood doors only, 1-3/4" thick
- Door bottom 3/8" undercut
- Installs as side wall mount

Size Options

6'6" and 8'2" long tracks available for single or bi-parting door installation. For bi-parting installation (2 doors sliding in opposite directions), order 1 full kit and 1 hardware only kit.

Stop Options

Standard Stop: No additional hardware to soften the closing of the door.

STOP1: Alternative stop style shown in the product thumbnail on this page. Only available on the W70 model.

Finish Options

32D Satin Stainless Steel
Brushed Stainless Steel

32 Bright Stainless Steel
Polished Stainless Steel

19 Graphite Black
Satin Black Powder Coated
